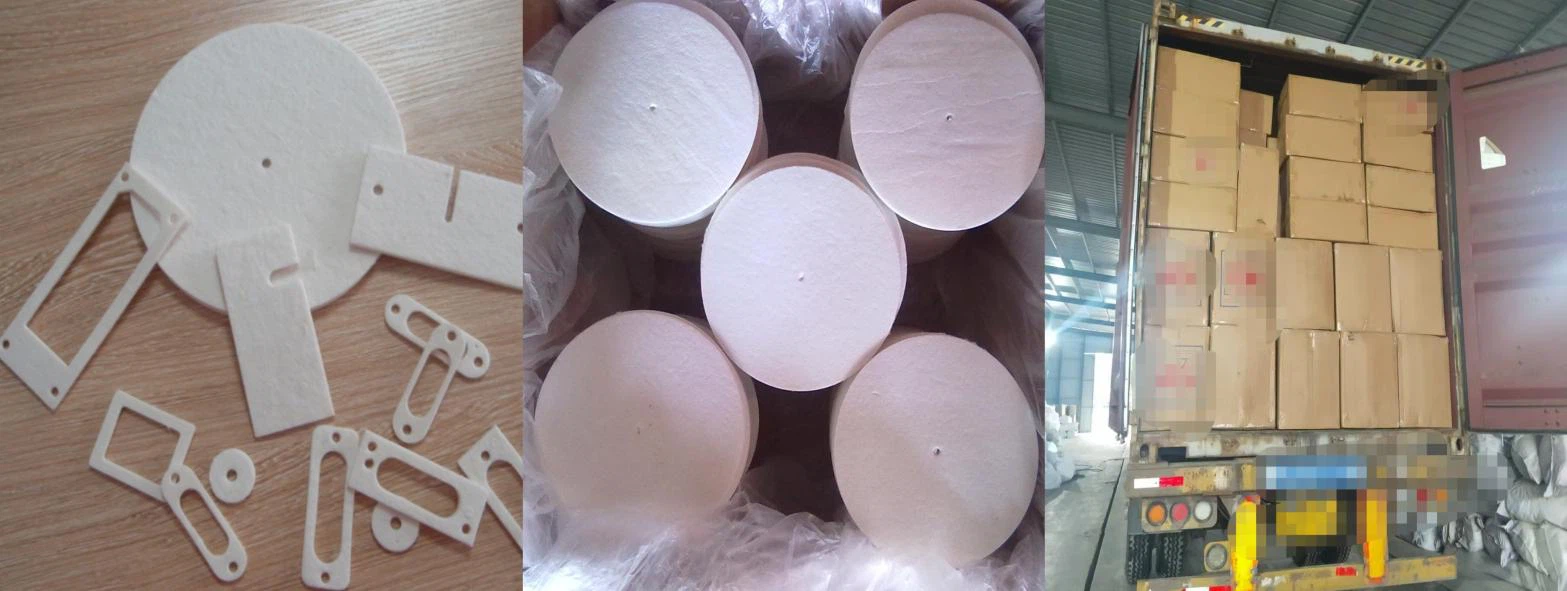

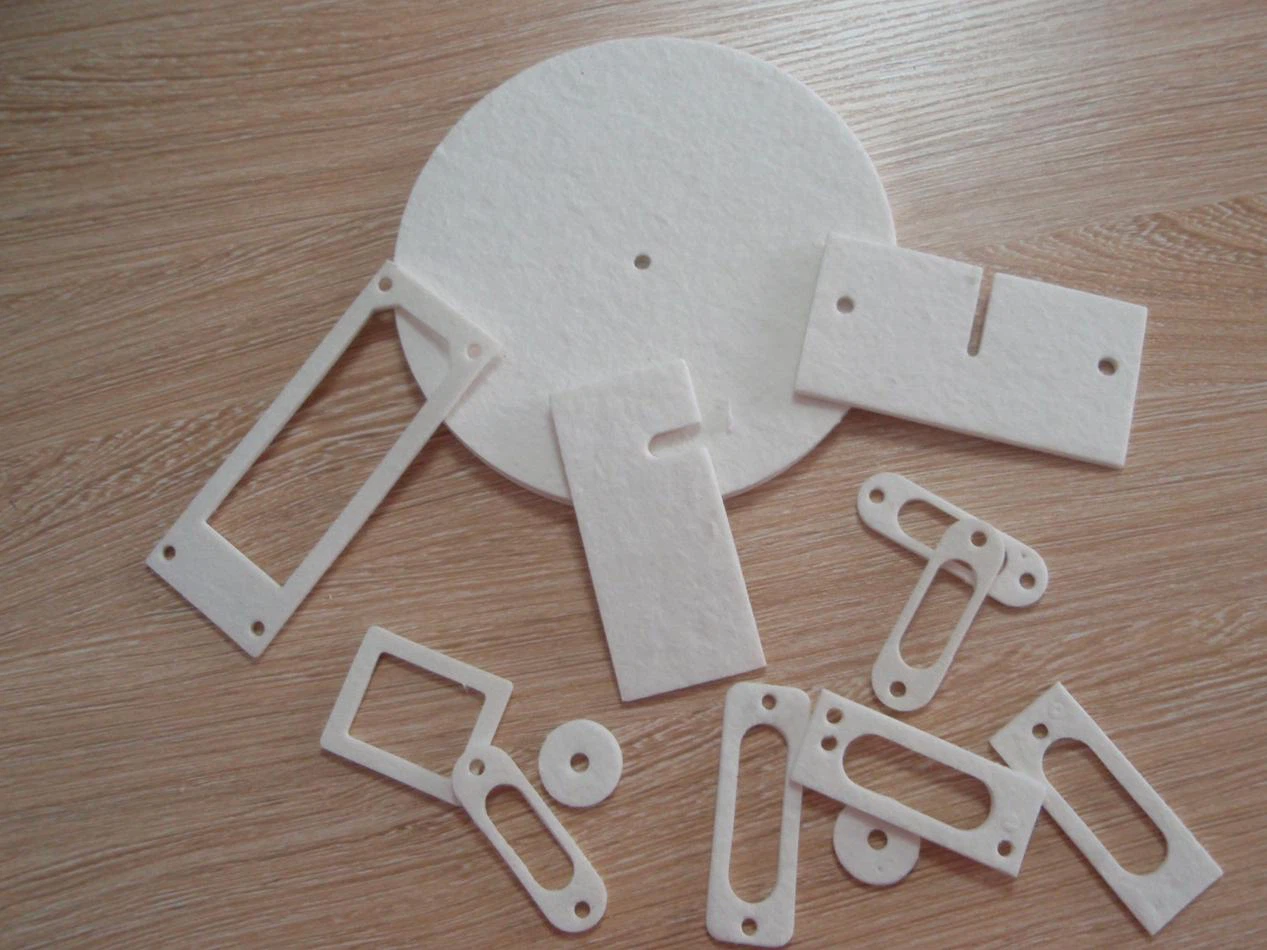

The ceramic fiber paper gasket is manufactured by ceramic fiber paper with high purity which is used in high-temperature insulating fields. With mould we manufacture ceramic fiber paper to different shapes and sizes to meet different demands.You can also cut use a knife. Ceramic fiber paper is made of refractory ceramic fiber with a little bond which is selected scientifically and controlled strictly. The bond will be completely burnt during the use. The product does not contain asbestos and is perfect material for sealing and insulating.

Product Features

Easy to cut,wrap or form
Low thermal conductivity and heat storage

Excellent thermal shock and flame resistance
Light weight
Resilient

Excellent hydrophobic property
Good dielectric strength
Free of asbestos

Application

1.Asbestos paper replacement
2.Investment cast mold wrap insulation

3.One-time consumable insulating applications
4.Back-up lining for metal troughs

5.Hot top lining
6.Applications where low binder content is required

7.Thermal and electrical insulation

8.Upgrade for fibreglass paper and blanket products

Technical Data

Classification Temperature(ºC)	1260(2300℉)	1430(2600℉)
Bulk density (Kg/M3)	200+/-15	200+/-15
Organic content(%)	6-8
Thermal conductivity(w/m.k) Density(200Kg/m3)	200 ºC(392℉) 0.075-0.085
	400 ºC(752℉) 0.115-0.121
	600 ºC(℉) 0.165-0.175
Moisture Content(%)	≤1	≤2
Chemical composition(%)	AI2O3 45-46	38-47
	SiO2 51-52	51-52
	ZrO2	15-17
Product specification mm	60000x1220x1,60000x610x1 30000x1220x2,30000x610x2 20000x1220x3,20000x610x3 15000x1220x4,15000x610x4 12000x1220x5,12000x610x5 10000x1220x6,10000x610x6
